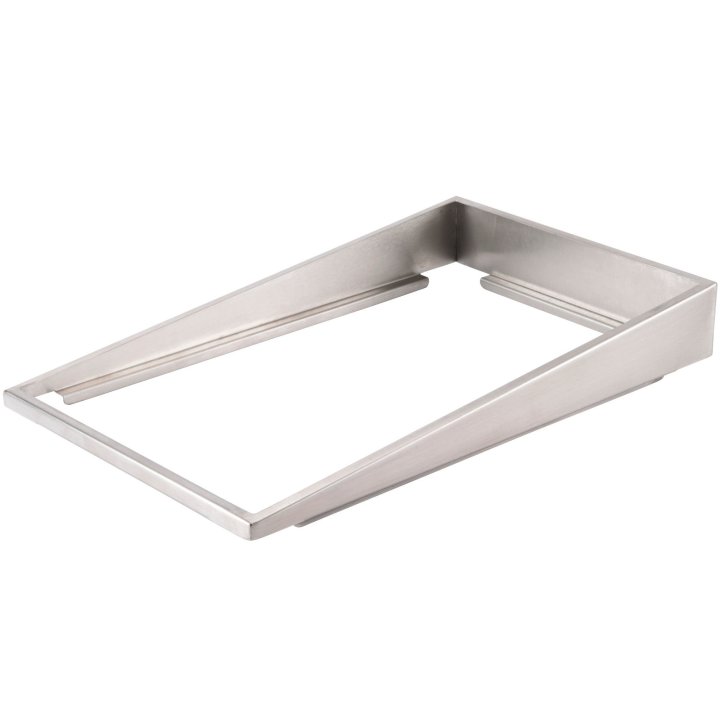

Single stainless steel angled adapter plate
Add dimension to buffet presentations with this stainless steel angled display adapter. Its unique design allows you to effortlessly lift up steam table pans, so they sit diagonally for better visibility and easier access for guests. The 300-series stainless steel is durable and easy to clean.
- Durable 300-Series stainless steel
- Elevates pans to enhance food presentation
- Six-degree front-to-rear slope
- Easy to clean
Product Specifications
Model Information
| Name | Value |
|---|---|
| EAN 13 | 8421661331173 |
| UPC | 029419331178 |

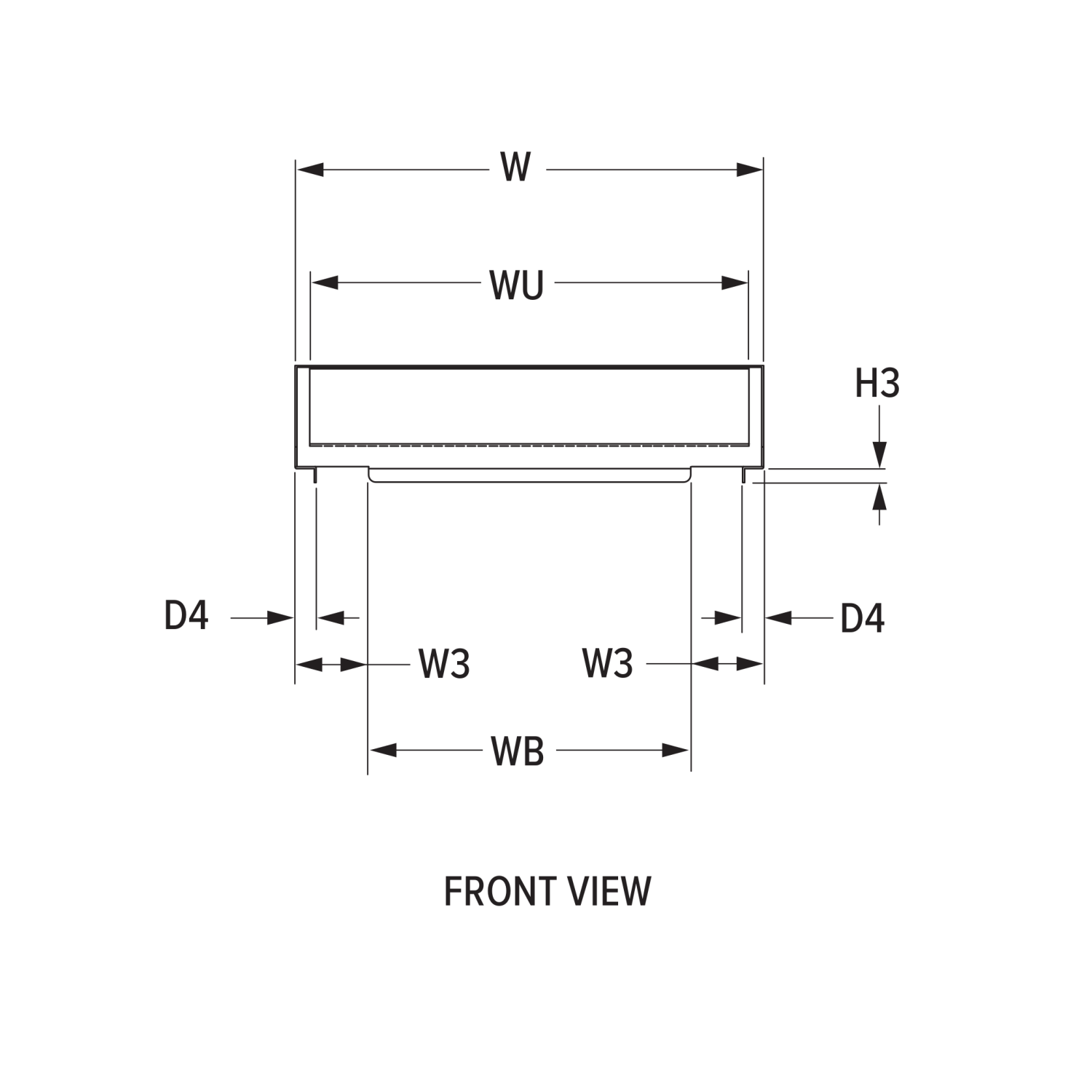

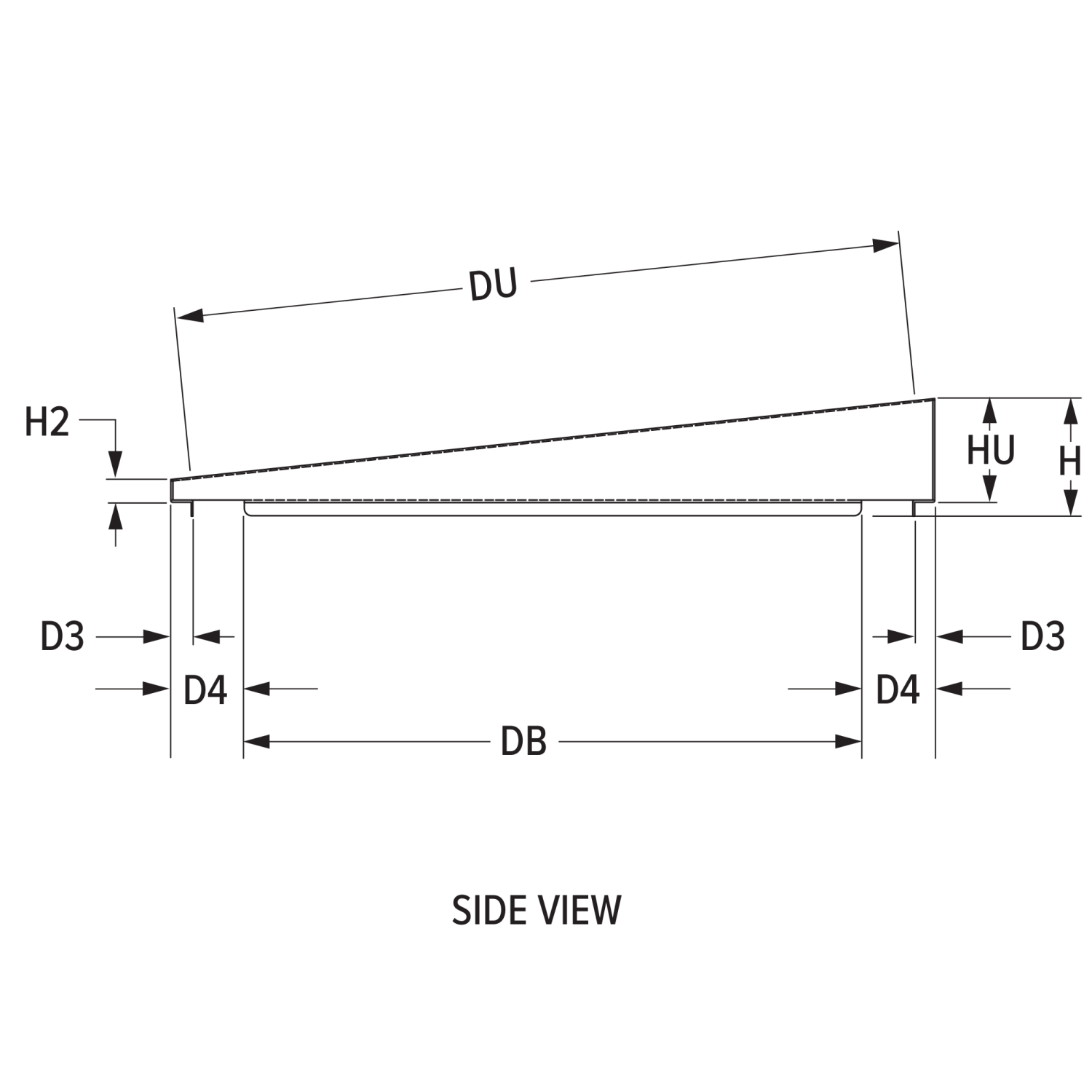

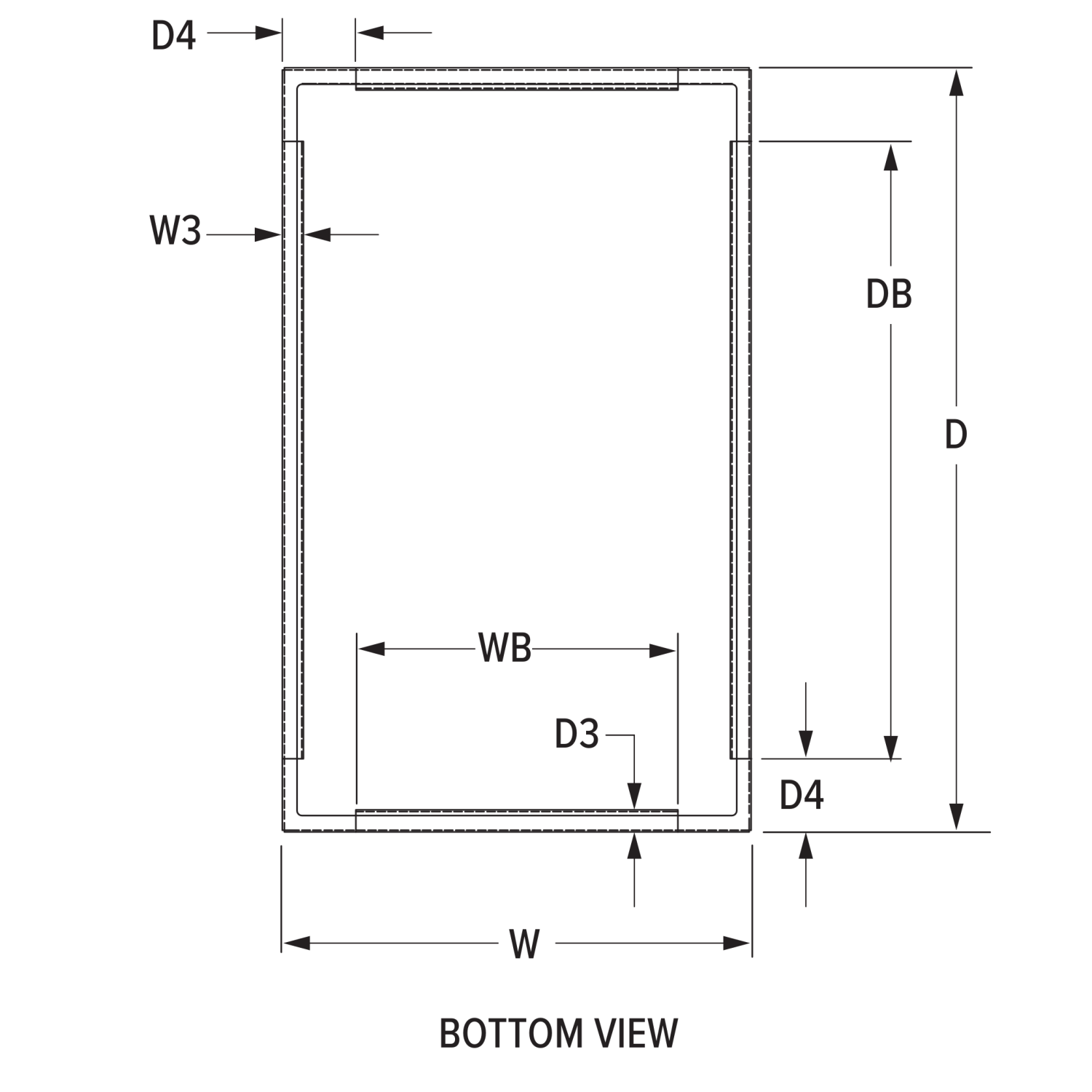

Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 12.795 x 20.866 x 3.241 |
| (W) Width (IN) | 12.75 |
| (WU) Usable Width (IN) | 12.008 |
| (WB) Width Base (IN) | 8.795 |
| (W3) Additional Width (IN) | 0.571 |
| (D) Depth IN | 20.87 |
| (DU) Usable Depth (IN) | 20.079 |
| (DB) Depth Base (IN) | 16.866 |
| (D3) Additional Depth (IN) | 0.606 |
| (D4) Additional Depth (IN) | 2 |
| (H) Height (IN) | 3.24 |
| Usable Height (IN) | 2.818 |
| (H2) Secondary Height (IN) | 0.625 |
| (H3) Additional Height (IN) | 0.424 |
| (H4) Additional Height (IN) | 2 |
| (W) Width (CM) | 32.5 |
| (WU) Usable Width (CM) | 30.5 |
| (WB) Width Base (CM) | 22.3 |
| (W3) Additional Width (CM) | 1.5 |
| (D) Depth (CM) | 53 |
| (DU) Usable Depth (CM) | 51 |
| (DB) Depth Base (CM) | 42.8 |
| (D3) Additional Depth (CM) | 1.5 |
| (D4) Additional Depth (CM) | 5.1 |
| (H) Height (CM) | 8.2 |
| Usable Height (CM) | 7.2 |
| (H2) Secondary Height (CM) | 1.6 |
| (H3) Additional Height (CM) | 1.1 |
| (H4) Additional Height (CM) | 5.1 |
Construction
| Name | Value |
|---|---|
| Construction Material | Stainless Steel |
| Material Type | Metals |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 2 |
| Case Width | 13.25 |
| Case Height | 14.000008 |
| Case Length | 21.5 |
| Case Lot Cube (ft.) | 0.83 |
| Case Lot Weight (lbs.) | 5.97 |
